SOAP Client
1.0

Send requests to SOAP APIs using the SOAP Client connector

Overview
Copy

USER TIP: It may help to be familiar with the soap npm package which this connector is based on. Please consult its official page here for more details.

The SOAP Client connector allows you to send requests to SOAP APIs via the soap npm package. It allows you to send requests in raw XML and make use of any existing authentications you may have already set up.

Authentication
Copy

You may create a new authentication in SOAP Client or reuse an existing authentication. Either way, you will then be able to jsonpath the authentication parameters into your XML.

JSONPATHS: For more information on what jsonpaths are and how to use jsonpaths with Tray, please see our pages on Basic data concepts and Mapping data between steps

The SOAP Client service makes no assumptions as to the format of your authentication parameters. This is so that you have the flexibility to store any data that you wish, unconstrained by the specific set of parameters of a given service.

IMPORTANT!: While on occasion you may be use to inserting your credentials directly into your XML, here it is not advised. This is because it will expose your credentials, specifically, within the input panel of the Debug view. Instead store your credentials within your authentication instead as per best practices. Then not only are the values obscured in the debug view but additionally, your authentication parameters can be reused in your other connector steps.

Creating authentication in SOAP Client
Copy

Within the workflow builder, highlight the SOAP Client connector.

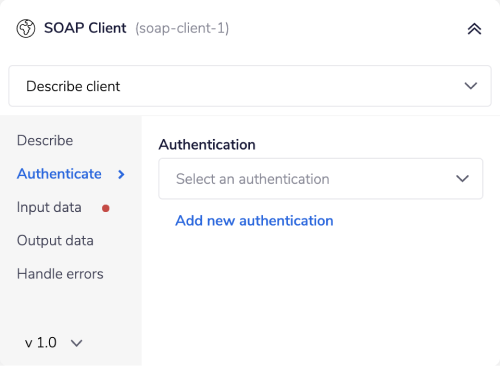

In the SOAP Client connector properties panel to the right of the builder click on the Authenticate tab and then on 'Add new authentication'.

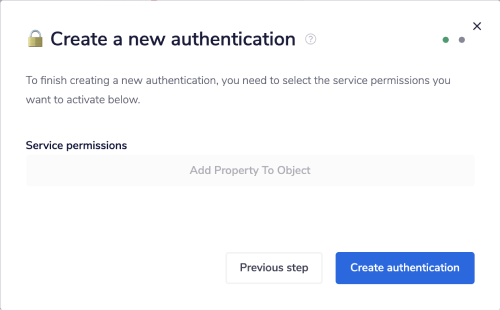

This will result in a Tray.io authentication pop-up modal. The first page will ask you to name your authentication and select the type of authentication you wish to create ('Personal' or 'Organization').

Authentication for SOAP Client begins with an empty object, to which you may add whatever data you would to store. Click 'Add Property To Object' to add authentication parameters to the new authentication.

For example, you could store a token in your SOAP Client authentication:

USER TIP: If you make a mistake, you can click 'Previous step' and then 'Next step' to return to this page and the authentication will be blank again and you can try again.

When you have finished adding fields to to the Tray.io authentication popup window, click the 'Create authentication' button.

Go back to your settings authentication field (within the workflow builder properties panel), and select the recently added authentication from the dropdown options now available.

Your connector authentication setup is complete.

In a SOAP Client step where this authentication is selected, you would be able to access the stored token via the jsonpath $.auth.token.

Using an existing authentication
Copy

As an alternative to creating a new SOAP Client authentication, you may instead select any existing authentication. Here is an example:

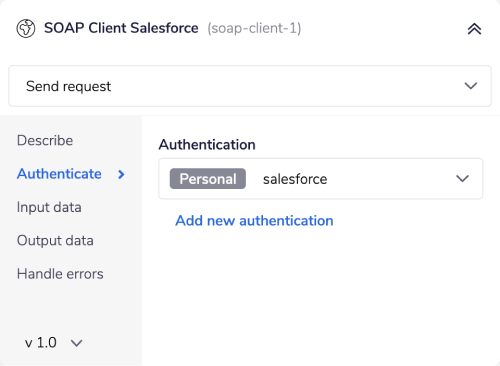

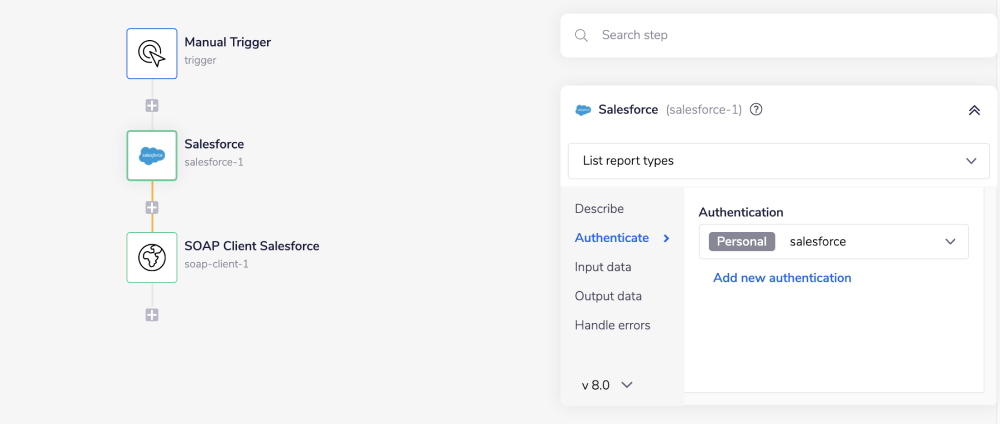

The Salesforce connector step has a pre-existing authentication. In the step following it, there is a SOAP Client step where this Salesforce authentication is selected:

USER TIP: In this example, running the Salesforce step first allows the access token to refresh so that it is valid when the we jsonpath it in the SOAP Client step

In this way, it is possible for the SOAP Client step to use the access token from the Salesforce authentication by the jsonpath {$.auth.access_token}:

Available Operations
Copy

Please see the Full Operations Reference for details on all available operations for this connector.

Notes on using SOAP Client
Copy

Send request
Copy

USER TIP: See the 'List SOAP methods' operation notes below for the supported methods that can be called using the 'Send request' operation.

You MUST write requests in raw XML.

The 'SOAP headers' field corresponds to what is inside the 'Header' XML element, and the 'XML body' field is everything inside the 'Body' XML element.

Consider this example XML request:

1
<soap:Envelope xmlns:soap="http://www.w3.org/2003/05/soap-envelope"
2
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
3
xmlns:tm="http://microsoft.com/wsdl/mime/textMatching/"
4
xmlns:tns="http://api.example.com/2006-11"
5
xmlns:s1="http://schemas.example.com/api/2006-11">
6
<soap:Header>
7
<SessionHeader xmlns="http://api.example.com/2006-11">
8
<SessionValue>C18t45LIqPDCU=</SessionValue>
9
</SessionHeader>
10
</soap:Header>
11
<soap:Body>
12
<DescribeGlobal xmlns="http://api.example.com/2006-11"></DescribeGlobal>
13
</soap:Body>
14
</soap:Envelope>

The 'SOAP Headers' field would be:

1
<SessionHeader xmlns="http://api.example.com/2006-11">
2
<SessionValue>C18t45LIqPDCU=</SessionValue>
3
</SessionHeader>

The 'XML body' field would be:

1
<DescribeGlobal xmlns="http://api.example.com/2006-11"></DescribeGlobal>

Note how in both cases the top-level elements themselves are not included, i.e. <soap:Header></soap:Header> and <soap:Body></soap:Body>.

'Authentication' field
Copy

The 'Send request' operation has an 'Authentication' field, which refers to specific authentication security protocols supported by the soap package. As of SOAP Client 1.0, this field offers the following options:

  • None / Manual

  • BasicAuthSecurity

  • BearerSecurity

  • NTLMSecurity

The purpose of this field is to map values of authentication parameters from the selected authentication on the 'Authenticate' tab or other source, including direct typed-in input.

These mapped authentication parameters are used by the soap package to format the appropriate authentication headers for the chosen authentication protocol.

Therefore the 'None / Manual' option should be used if a SOAP API requires authentication parameters to be sent in the 'XML body', or if you wish to manually define the authentication headers yourself.

List SOAP methods
Copy

This operation can be used to return a listing of all the methods described in a WSDL. These are the supported methods that can be called by the 'Send request' operation.

Describe client
Copy

This uses the Client.describe() method provided by the soap package to return a description of services, ports and methods.

Getting the WSDL
Copy

The WSDL is the key to using the SOAP Client connector. There are three ways to provide a WSDL:

  • By URL: This is the recommended way

  • By uploaded file: e.g. from Google Drive

  • From internal WSDLs

Please note that while the internal WSDLs are all current at the time of release of SOAP Client 1.0, since they are static internal files, it is recommended to retrieve the WSDL directly by URL in case a WSDL has been updated.

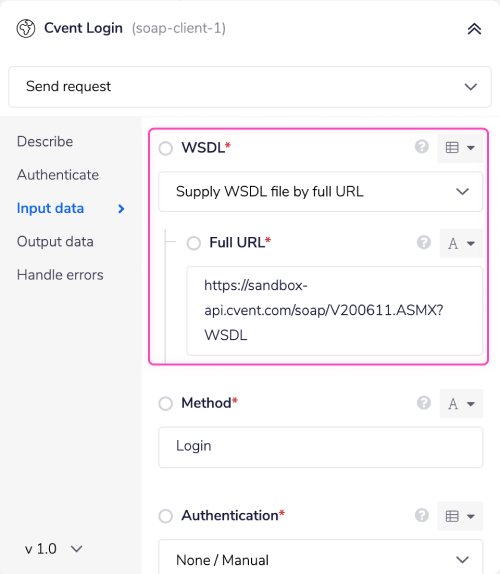

Supply WSDL file by full URL
Copy

Simply provide the URL to the WSDL file.

Import WSDL from file
Copy

Users can get the WSDL from any service that can output it as a File object.

In this case the file must have the .xml file extension to ensure that it will be served as text/xml.

Select an internal WSDL
Copy

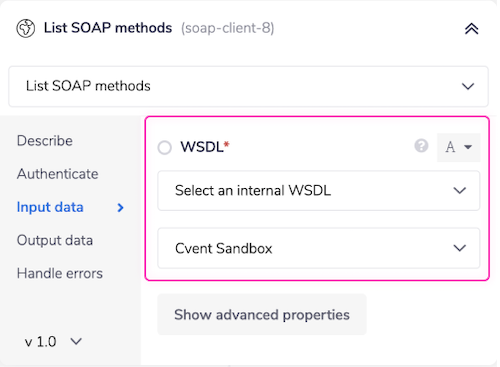

For your convenience, there a few WSDLs stored internally that you can select from.

Example Usage
Copy

TRAY POTENTIAL: Tray is extremely flexible. By design there is no fixed way of working with it - you can pull whatever data you need from other services and work with it using our core and helper connectors. This demo which follows shows only one possible way of working with Tray and the soap-client connector. Once you've finished working through this example please see our Introduction to working with data and jsonpaths page and Data Guide for more details.

Below is an example of how to set up a SOAP Client step by importing the WSDL file of 'Microsoft Dynamics GP' that has stored in Google Drive. The SOAP Client will then be used to call the GetListItems method.

EXTRA AUTHS: In order to complete this workflow, you will also need to be authenticated with the Google Drive connector.

The steps will be as follows:

  1. Set up a new workflow with a manual trigger.

  2. Locate the WSDL file in Google Drive.

  3. Retrieve the WSDL file from Google Drive.

  4. Set up the SOAP Client using the retrieved WSDL file.

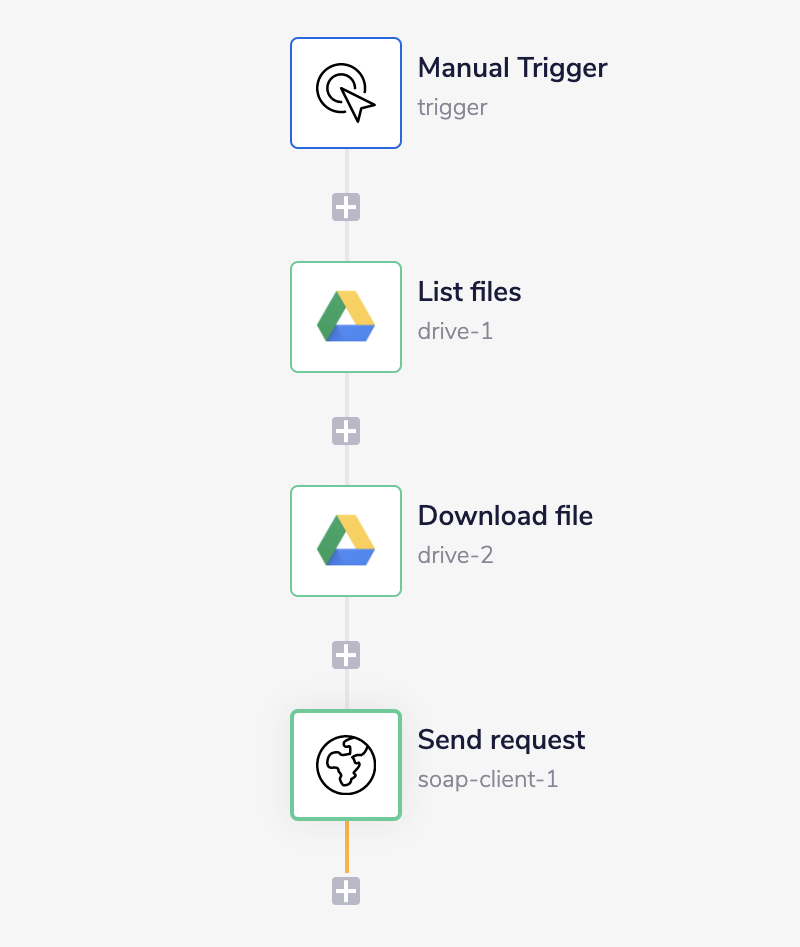

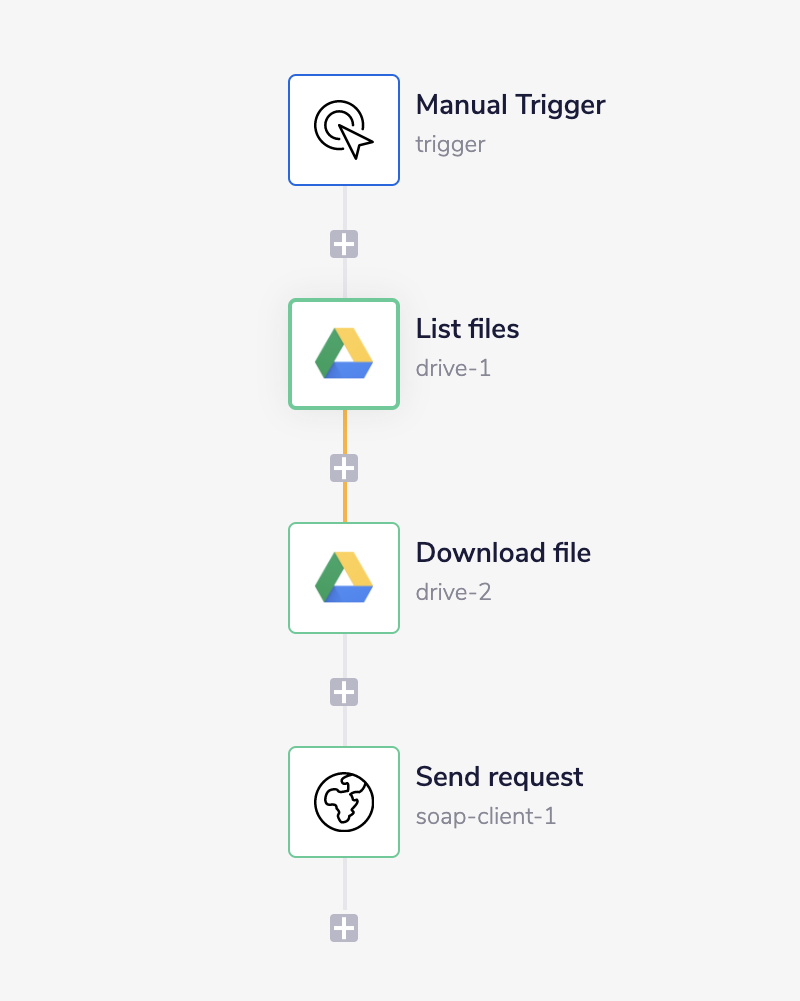

Your completed workflow should look similar to this:

1 - Setup the Manual trigger
Copy

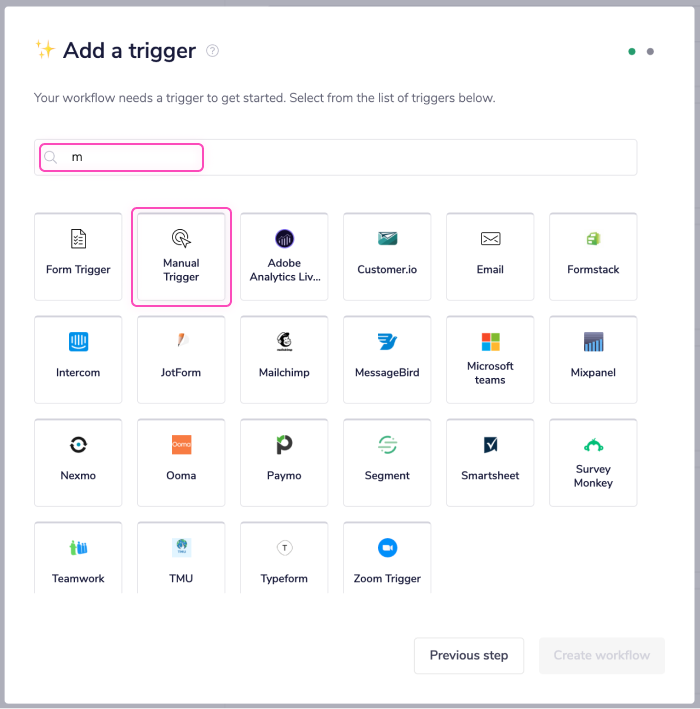

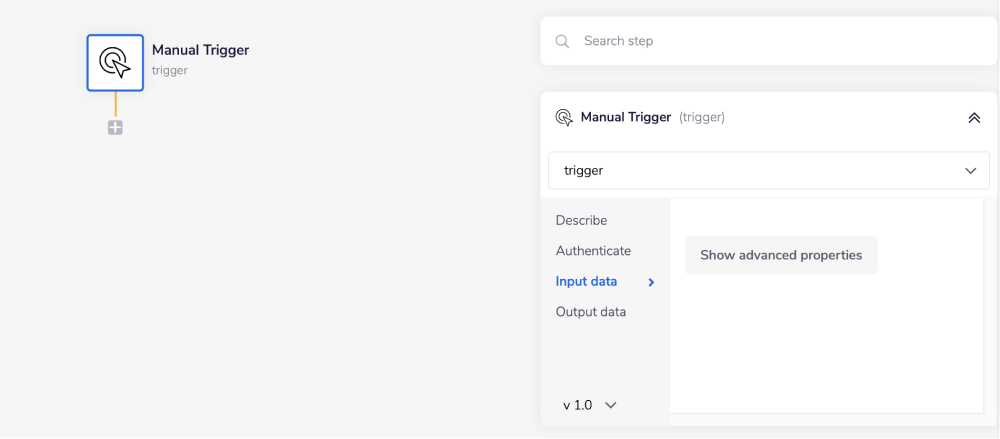

Once you have clicked 'Create new workflow' from your main Tray.io dashboard named it, select the Manual trigger from the trigger options available:

After clicking 'Create workflow', you will be redirected to the Tray.io workflow dashboard.

You are now ready to begin building your workflow.

2 - Set up Google Drive step to locate the WSDL
Copy

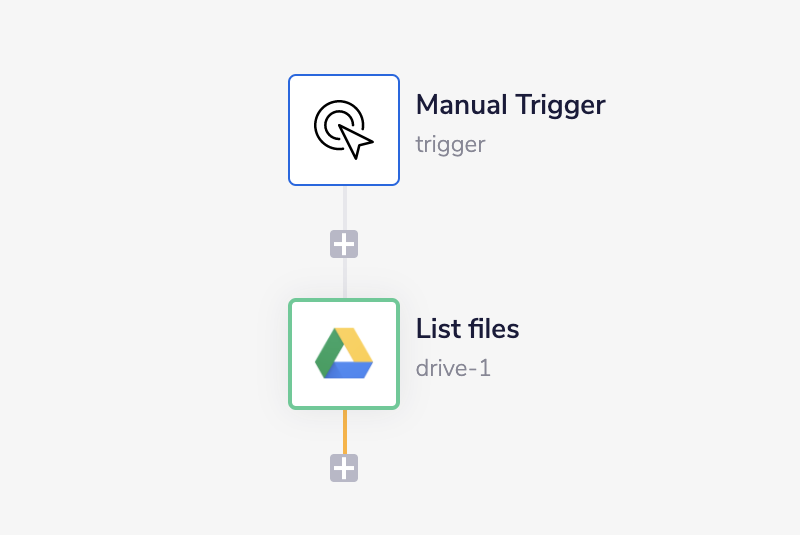

From the connectors panel on the left, add a Google Drive connector to your second step.

In this Google Drive step, set the operation to 'List files'. For this example, there is a WSDL file in Google Drive named DynamicsGPWebServices.xml. It is important that the file has the extension of xml so that it will have the MIME type correctly set to 'text/xml'.

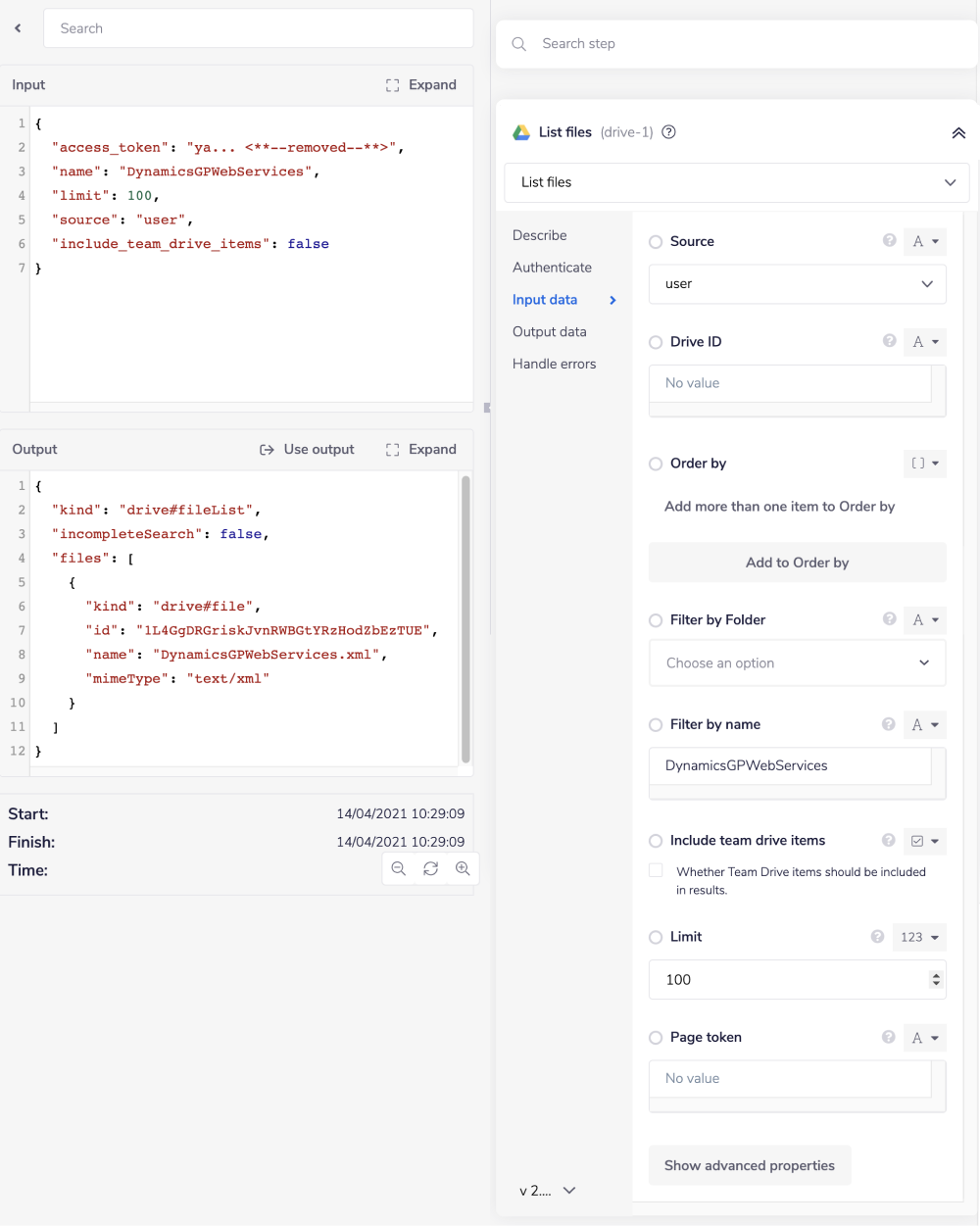

In order to download this file we need its ID. So we will use the 'List files' operation to get the list of files in my drive ('Source': user), with 'Filter by name' set to DynamicsGPWebServices.

For this example, there is one result which the file we are looking for.

Feel free to re-name your steps as you go along to make things clearer for yourself and other users. The operation names themselves often suffice.

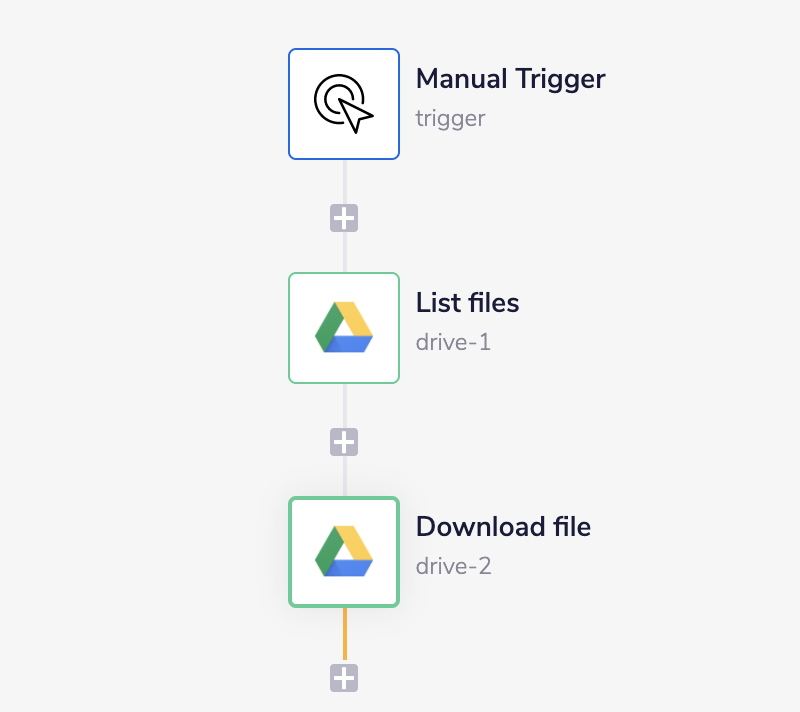

3 - Download the WSDL from Google Drive
Copy

From the connectors panel on the left, add another Google Drive connector to your third step. Set the operation of this Google Drive step to 'Download file'.

We can now use the file ID returned by the previous step to download the file. Use the 'File ID' mapping icon to generate the connector-snake and drag it over to have its tail hover over the 'List files' step.

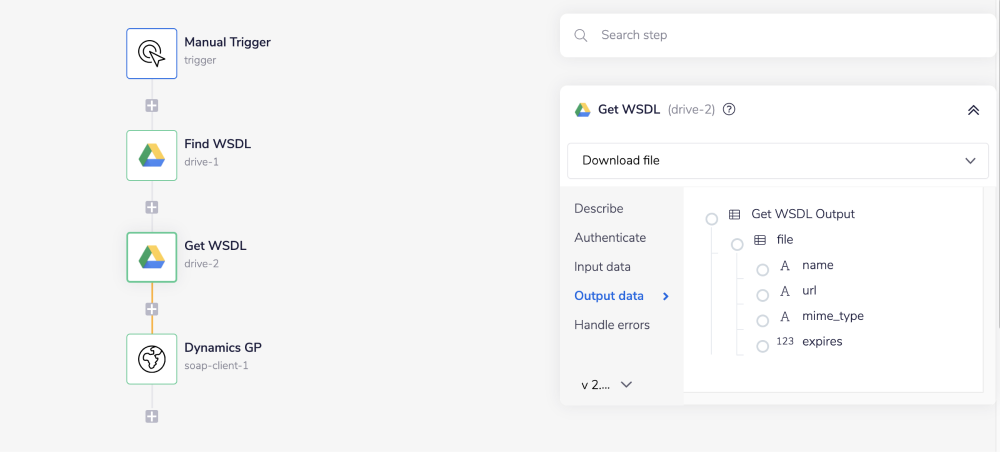

When you release the mouse button, select id from the list of output properties displayed. This will auto-populate a jsonpath within the 'File ID' input field, and update the type selector to jsonpath.

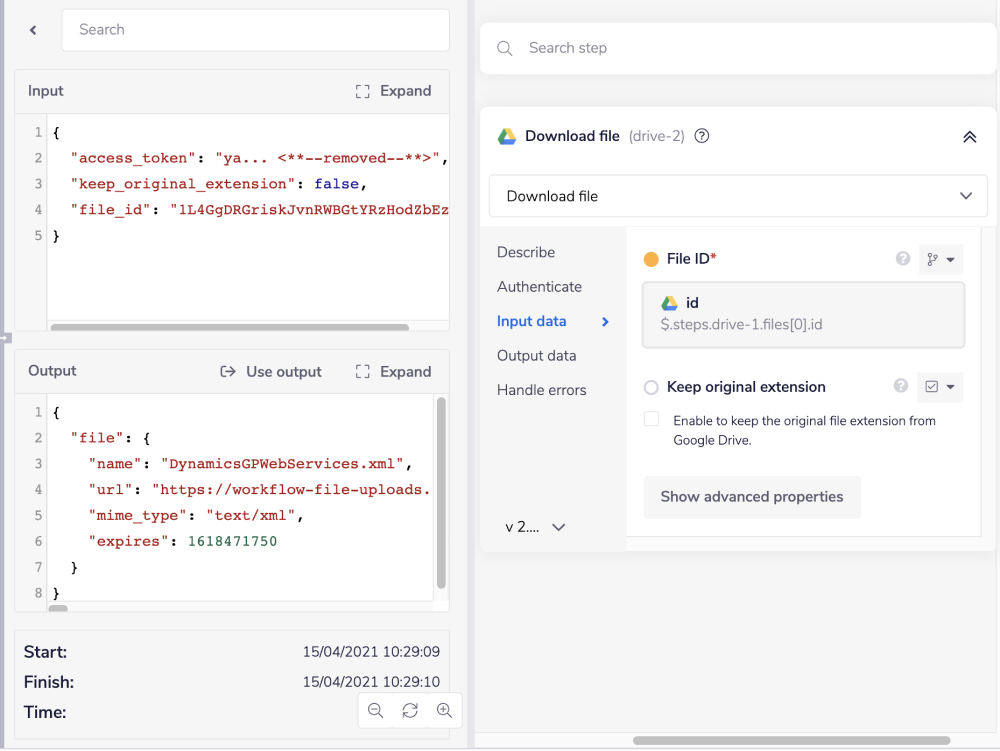

For more clarification on the pathways you have available, open the Debug panel to view your step's Input and Output.

JSONPATHS: For more information on what jsonpaths are and how to use jsonpaths with Tray, please see our pages on Basic data concepts and Mapping data between steps

CONNECTOR-SNAKE: The simplest and easiest way to generate your jsonpaths is to use our feature called the Connector-snake. Please see the main page for more details.

The 'Download file' operation in this Google Drive step will download the WSDL file and return a file object that will be used as input in the next step.

4 - Use the SOAP Client to 'Send request'
Copy

From the connectors panel on the left, add a SOAP Client connector to your fourth step.

For our example, the important inputs are:

  • WSDL (always required)

  • Method (always required)

  • Authentication (always required)

  • XML body

The other inputs can be left as they are.

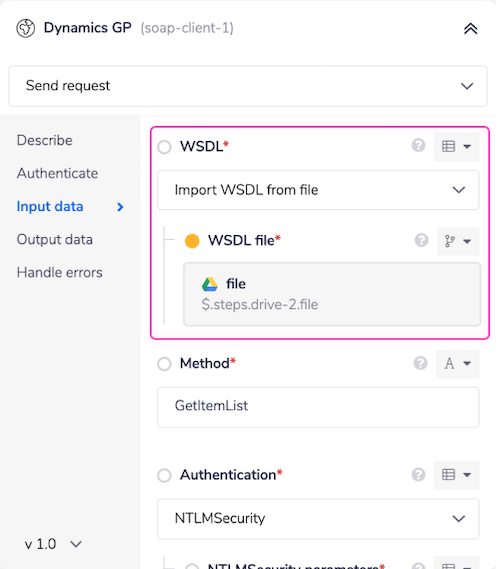

For WSDL, select 'Import WSDL from file' to reveal the 'WSDL file' property. Use the mapping icon here to generate a connector-snake and drag it over to have its tail hover over the 'Download file' step.

When you release the mouse button, select file from the list of output properties displayed. This will auto-populate a jsonpath within the 'WSDL file' input field, and update the type selector to jsonpath.

The Method we will call is GetListItems.

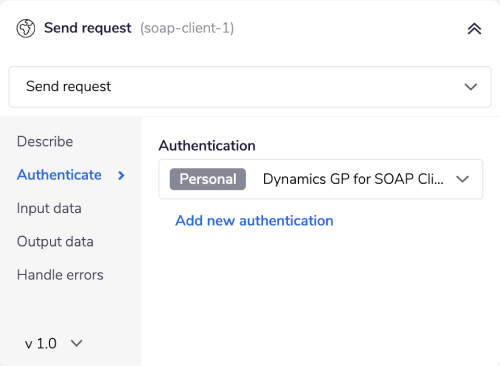

For 'Authentication', the 'Microsoft Dynamics GP' web service uses the NTLM protocol, so select the NTLMSecurity option.

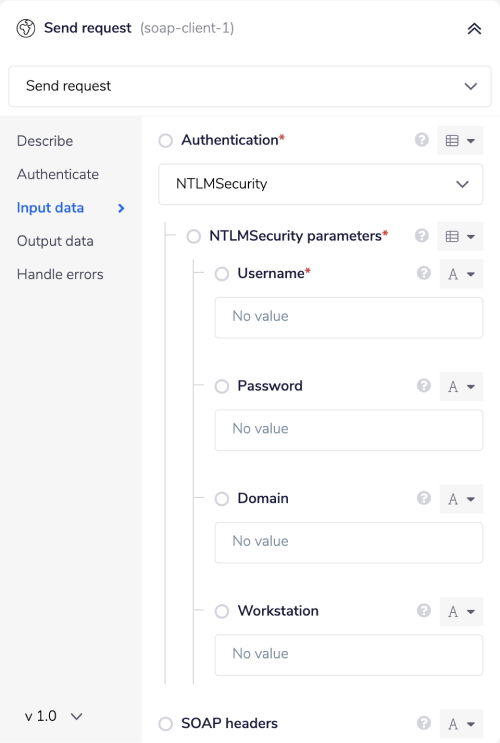

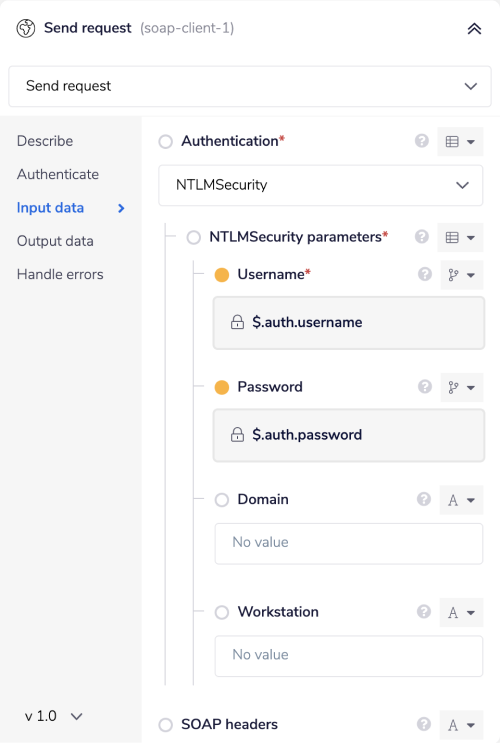

Note the fields supported by the NTLM protocol. Now go to the 'Authenticate' tab and click 'Add new authentication'

Now we will create a new authentication as described above in Creating authentication in SOAP Client

Let's say that in this example, we only need a username and password. So we will create a new SOAP Client authentication and store these values.

With the created authentication selected in the 'Authenticate' tab, return to the 'Input data' tab where we will jsonpath the values stored in the authentication.

Change the field data type to 'jsonpath' and begin typing $. and suggestions will appear. The result is that the 'Username' and 'Password' fields will contain jsonpaths to the values in the authentication.

Finally, we need to provide the body of the XML request:

1
<GetItemList xmlns="http://schemas.microsoft.com/dynamics/gp/2006/01">
2
<criteria>
3
<Name>UK</Name>
4
</criteria>
5
<context>
6
<OrganizationKey xsi:type="CompanyKey" xmlns="http://schemas.microsoft.com/dynamics/2006/01">
7
<Id>7</Id>
8
</OrganizationKey>
9
<CurrencyType>Transactional</CurrencyType>
10
</context>
11
</GetItemList>

The SOAP Client is configured and the workflow is ready to run.

To see the results of running the workflow, click on 'Run workflow' and go to 'Debug'.

The logs show that the workflow has run successfully and the SOAP Client has sent the request to the Microsoft Dynamics GP API.
