Adobe Experience Manager

1.1

Adobe Experience Manager is a content management solution that makes it easy for marketers to build value, be consistent, and get personal.

Overview

Copy

Adobe Experience Manager is a comprehensive content management solution for building websites and all of their complementary applications, including mobile apps, paperless forms and online communities.

Authentication

Copy

When using the Adobe Experience Manager connector, the first thing you will need to do is go to your Tray.io account page, and select the workflow you wish to work on. Once in the workflow dashboard itself, search and drag the Adobe Experience Manager connector from the connectors panel (on the left hand side) onto your workflow.

With the new Adobe Experience Manager connector step highlighted, in the properties panel on the right, click on 'New Authentication' which is located under the 'Settings' heading.

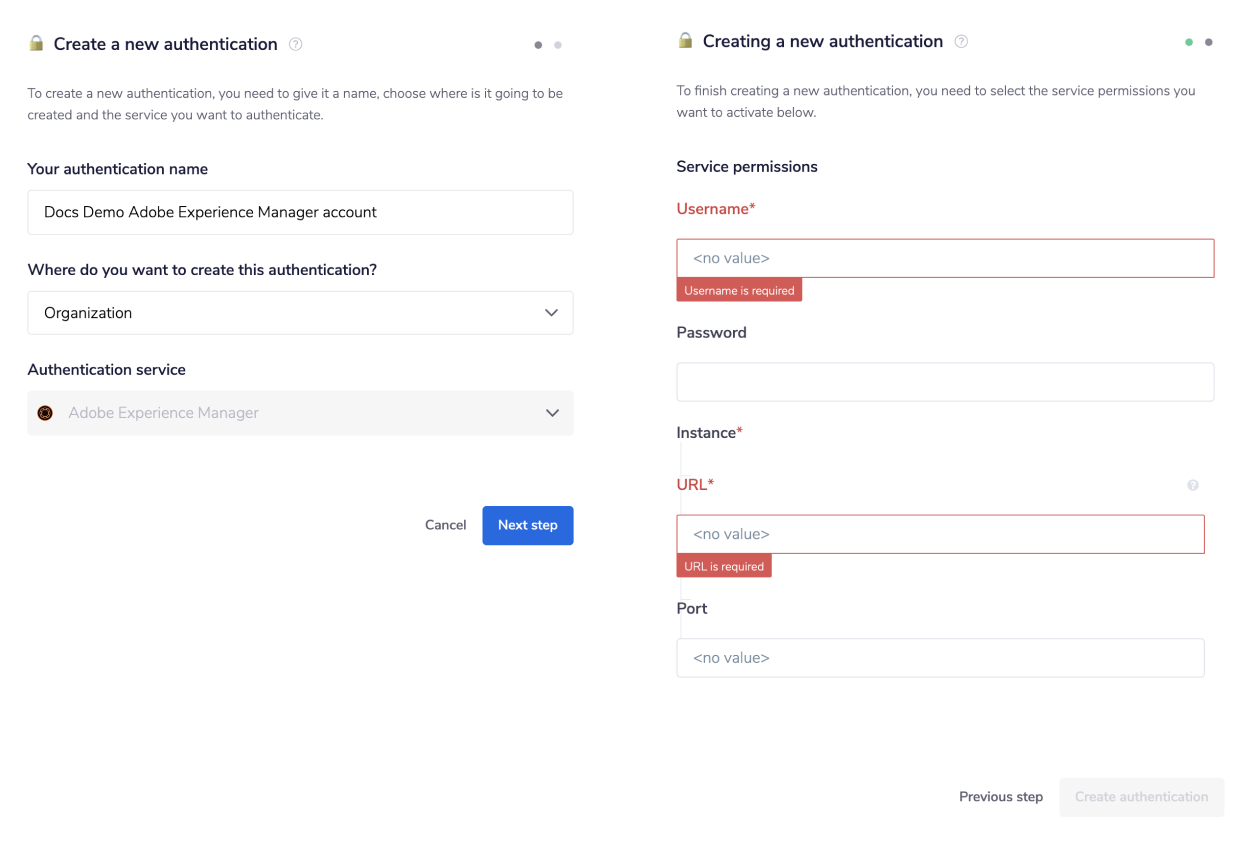

This will result in a two step Tray.io authentication pop-up window, that should look like this:

As you can see, besides from naming your authentication appropriately and selecting the purpose, you will need your 'Username', 'Password', 'Port' and 'URL'.

The username and password are the same as the ones you use to log into your Adobe Experience Manager instance.

Your URL and a PORT are those which are associated with your account. For example if the URL to your instance is https://docsdemo.com:1234 you will enter https://docsdemo.com as URL and 1234 as PORT. Depending on your server set up, some times you may not even need a port.

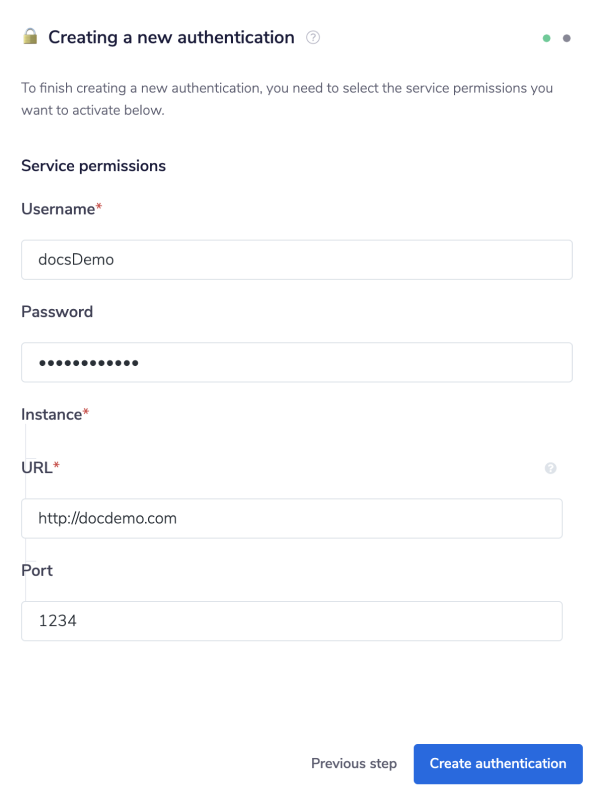

The result should be similar to the below:

Available Operations

Copy

The examples below show one or two of the available connector operations in use.

Please see the Full Operations Reference at the end of this page for details on all available operations for this connector.

Note on Operations usage

Copy

Paths

Copy

NAVIGATION

Knowing how to correctly navigate Paths within Adobe Experience Manager is important.

For instance, know that you can navigate through the content of your Adobe Experience Manager instance, by specifying the path to the folder you wish to get the content of.

A path example could be: /assets/we-retail/en/people.json

The rel property of a path specifies if the path is relative to the containing folder, or whether it points to resources in another folder. A path where rel is equal to self is a path that points to itself. Whereas a path where rel is equal to content, is a path to a downloadable file.

Note that you can then use the 'Get path content" operation to see what any of these paths contains.

DOWNLOADS

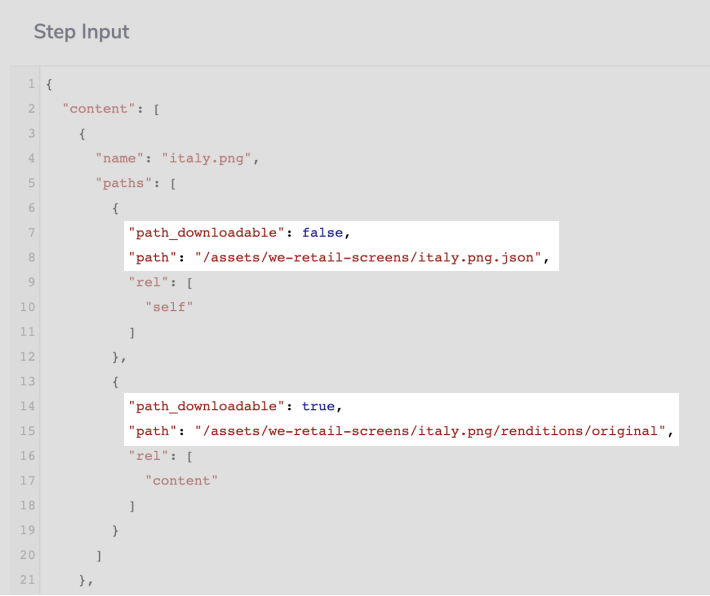

When you go to your Debug panel and check the output from a pervious step - for example 'Get path content' - you will have two path options displayed, but only one of them is downloadable.

The first path displayed may show the file path "ending" with a file you wish to download, but if you look closely you will notice that the file type goes past the normal format, and in fact ends with .json (instead of for exmaple, .png etc). It is therefore not possible to download the file as expected. This path can instead be used to get information about the file itself, such as metadata.

The second file path seemingly goes beyond the file type and into another couple of folder options altogether, but this is just Adobe's way of making sure the image within said path, renders as expected. THIS is the file path to use when you intend to download anything.

Navigating through Folders

Copy

The output of the 'Get path content' operation allows you to navigate through the folders available in Adobe Experience Manager. Three main properties will be returned:

• Content: A list of folders/files found for the given path. For each one of these items there is the property path_downloadable that you can use to check whether there is something to download at that path (using the Download file operation) or not.

• Metadata: A list of properties related to the file, if the path specified points to a file.

• Navigation: A List of paths that you can use to go either "up" to the parent folder but also to go to the next page of results. If there is a next or previous page of results, this list will also contain a path to the previous or next page.

Using the Raw HTTP Request ('Universal Operation')

Copy

As of version 1.1, you can effectively create your own operations.

This is a very powerful feature which you can put to use when there is an endpoint in Adobe Experience Manager which is not used by any of our operations.

To use this you will first of all need to research the endpoint in the Adobe Experience Manager API documentation v6.5, to find the exact format that Adobe Experience Manager will be expecting the endpoint to be passed in.

Note that you will only need to add the suffix to the endpoint, as the base URL will be automatically set (the base URL is picked up from the value you entered when you created your authentication).

The base URL for Adobe Experience Manager is made up of the URL and port authentication parameters as mentioned in the Authentication section of this page. So if you have https://docsdemo.com as the URL and 1234 as PORT, the base URL will be https://docsdemo.com:1234. Depending on your server set up, some times you may not even need a port.

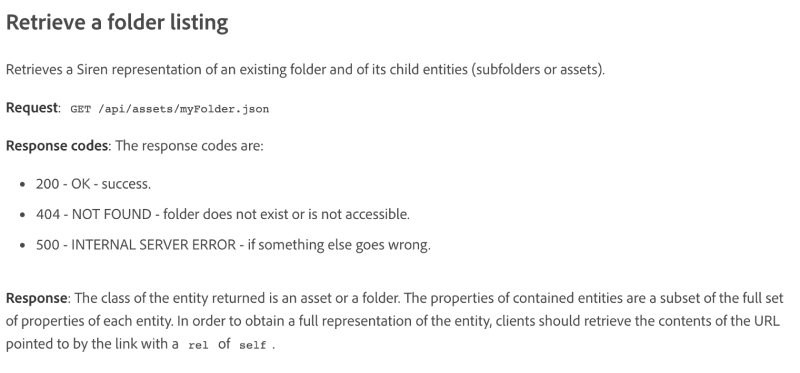

For example, say that the 'Get folder' operation did not exist in our Adobe Experience Manager connector, and you wanted to use this endpoint, you would use the Adobe Experience Manager API docs to find the relevant endpoint - which in this case is a GET request called: /api/assets/myFolder.json.

More details can be found here.

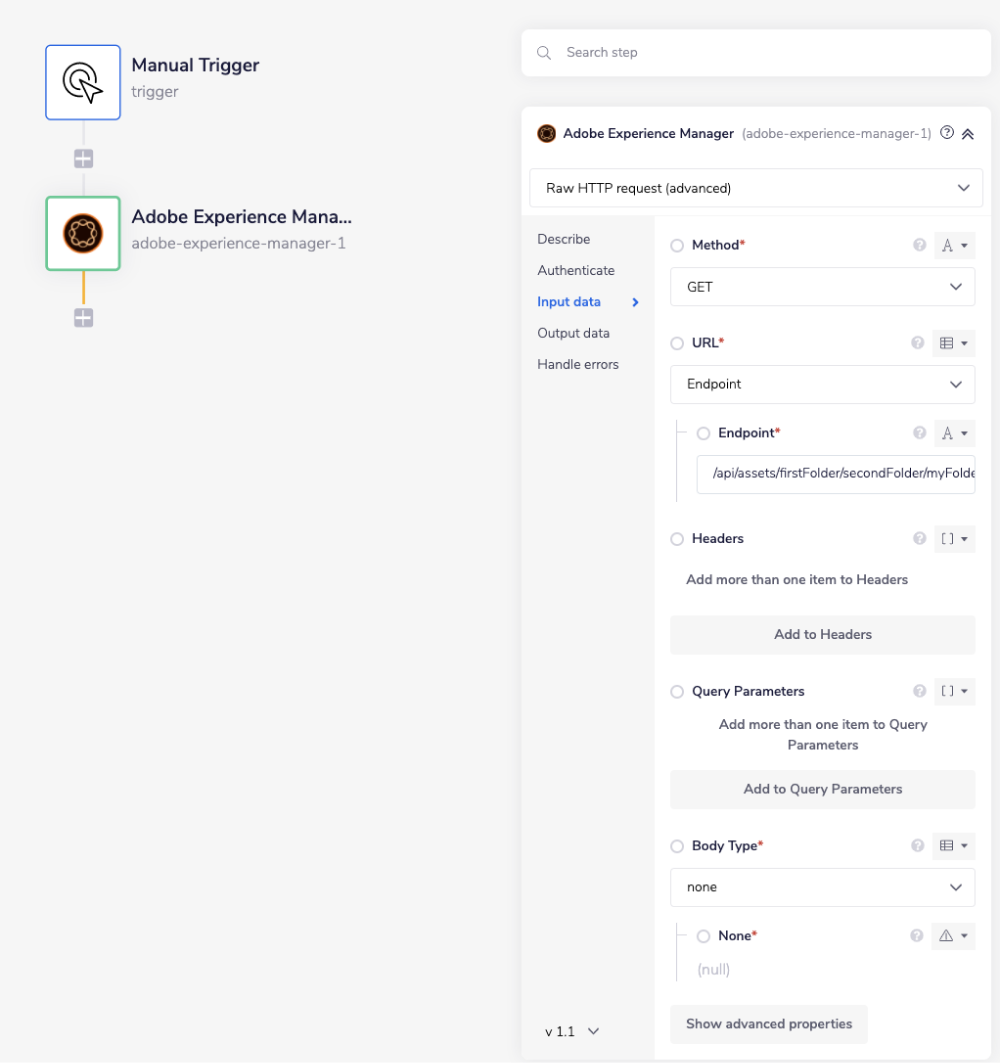

The myFolder part of the endpoint is the path to the folder you wish to get information for, this could be the name of the folder like here it is here myFolder or could be a path to a deeper directory if the folder is contained within other directories e.g. firstFolder/secondFolder/myFolder. So if you know what your method and path is to create the endpoint, you can get the folder information with the following settings:

Method: GET

Endpoint: /api/assets/firstFolder/secondFolder/myFolder.json

Body Type : none

Final Example outcome being: https://docsdemo.com:1234fi/api/assets/firstFolder/secondFolder/myFolder.json

Example usage

Copy

In this scenario, there is a folder called "Project" in the assets section, which contains another folder ("My folder") and a file ("image.png") that will be downloaded.

The steps will be as follows:

1. Setup manual trigger and List folders.

2. Get the content of this folder, and download a particular file.

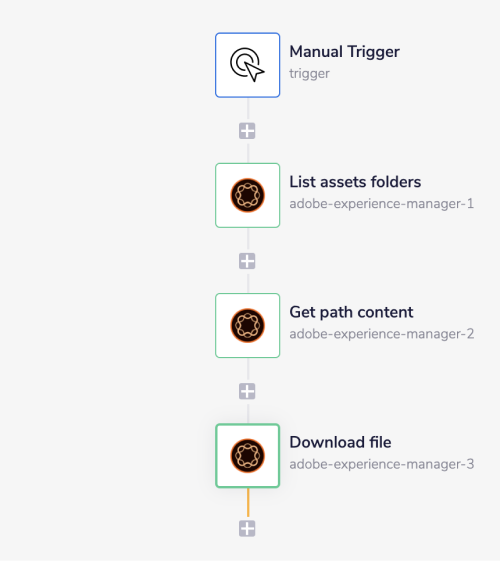

The final outcome should look like this:

1 - Setup trigger & List Folders

Copy

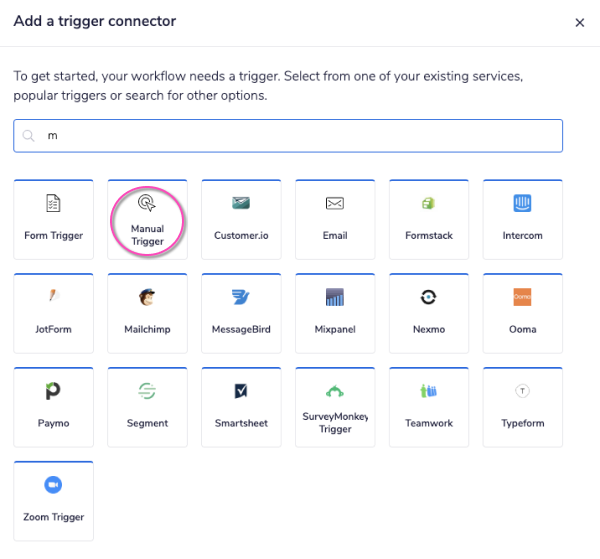

Once you have clicked 'Create new workflow' on your main Tray.io dashboard (and named said new workflow), select the Manual trigger from the trigger options available:

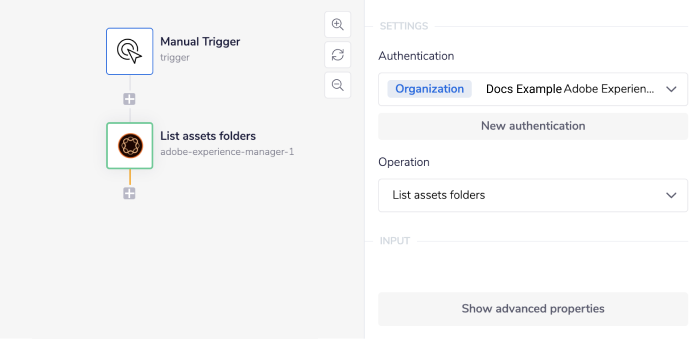

Once you have been redirected to the Tray.io workflow dashboard, from the connectors panel on the left, add a Adobe Experience Manager connector to your second step. Set the operation to 'List assets folders'.

2 - Get Folder content

Copy

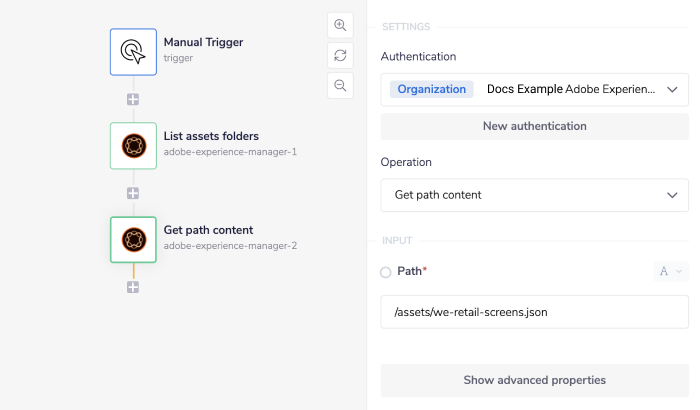

Add another Adobe Experience Manager connector to your workflow and set the operation to 'Get path content'.

As the way to navigate around your Adobe Experience Manager account is similar to that of any directory path, you can specify the path you want by using the same style of navigation: /assets/we-retail-screens.json.

To double check, you can also use the 'List assets folders' operation to find the path your project file. Here's a snippet from the debug:

1
{
2
	"result": [
3
		{
4
			"name": "project",
5
			"paths": ["/assets/project.json"]
6
		}
7
	]
8
}

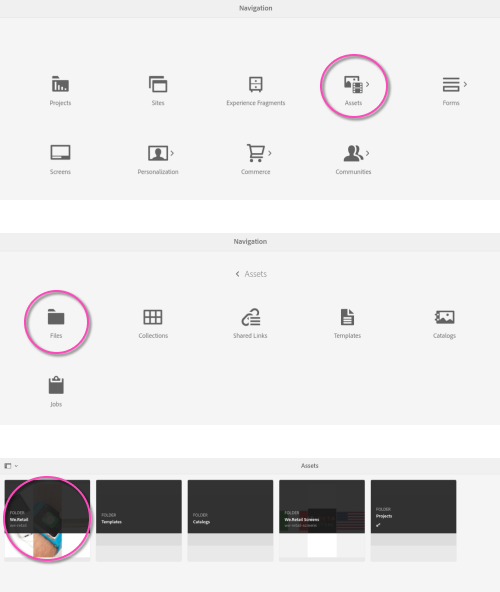

From the Adobe side of things it will navigate as follows:

3 - Download file

Copy

Add a final Adobe Experience Manager connector to your workflow and set the operation to 'Download file'.

The path that you will need to specify, will be found again in your Debug panel. Please see Note on Operations usage -> Paths -> Downloads above for more details on how to find this path.

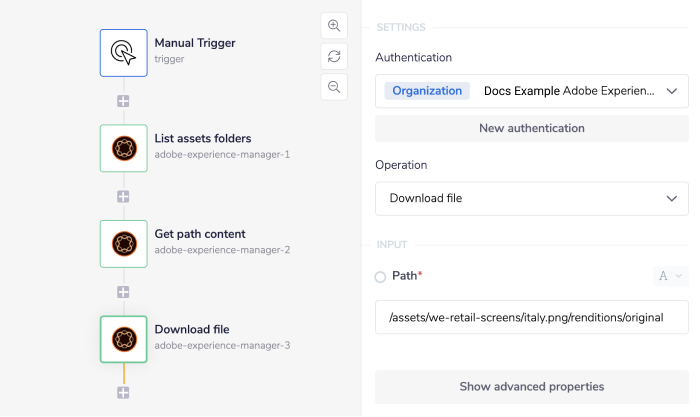

Your work flow step should look similar to the below:

Once you run said workflow, you should end up with a file automatically locally downloaded.
