Artisan IMG > Call Rail (call-rail) (d859382a-0ea3-4eae-8e1d-08c2c29106ca)

CallRail
1.0

CallRail tracks and manages your phone leads, forwarding marketing calls to your main phone number.

Overview
Copy

The CallRail platform builds on Call Tracking to provide an entire suite of integrated tools that makes marketing your business and turning leads into loyal customers a cinch. CallRail Call Tracking solution attributes (or matches) incoming phone calls and text messages to your marketing activities.

API Information
Copy

The Base URL used for the CallRail connector is https://api.callrail.com. More information can be found on their main API documentation site.

Authentication
Copy

Within the builder, click on the CallRail connector to display the connector properties panel. Select the 'Auth' tab and click on the 'New authentication' button.

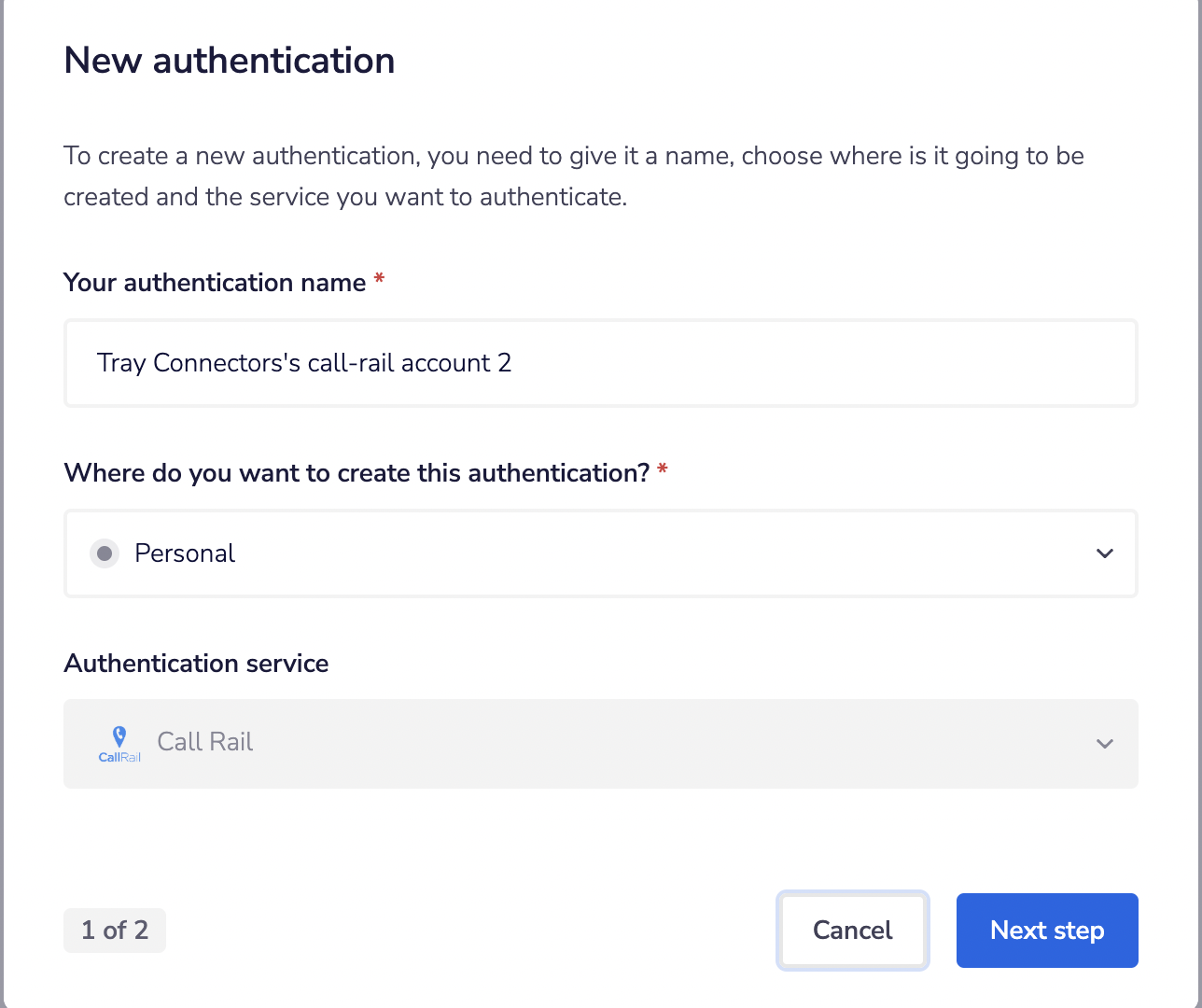

In the Tray.io authentication pop-up modal, name the authentication in a way that will quickly identify it within a potentially large list. For example, whether it is a Sandbox or Production auth, etc.

Consider who/ how many people will need access to this authentication when choosing where to create this authentication ('Personal' or 'Organisational').

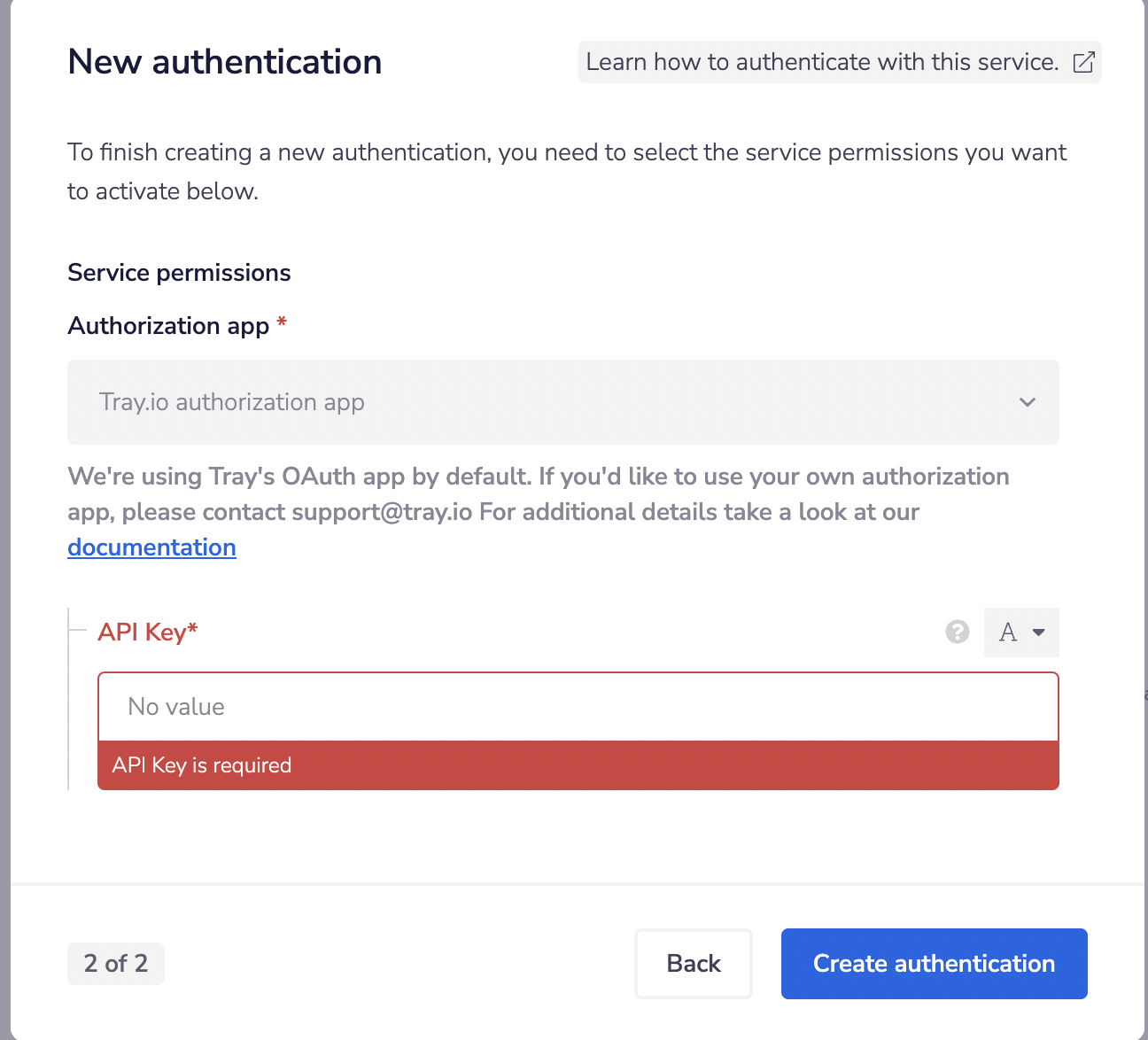

The second page asks you for your 'API Key' credentials.

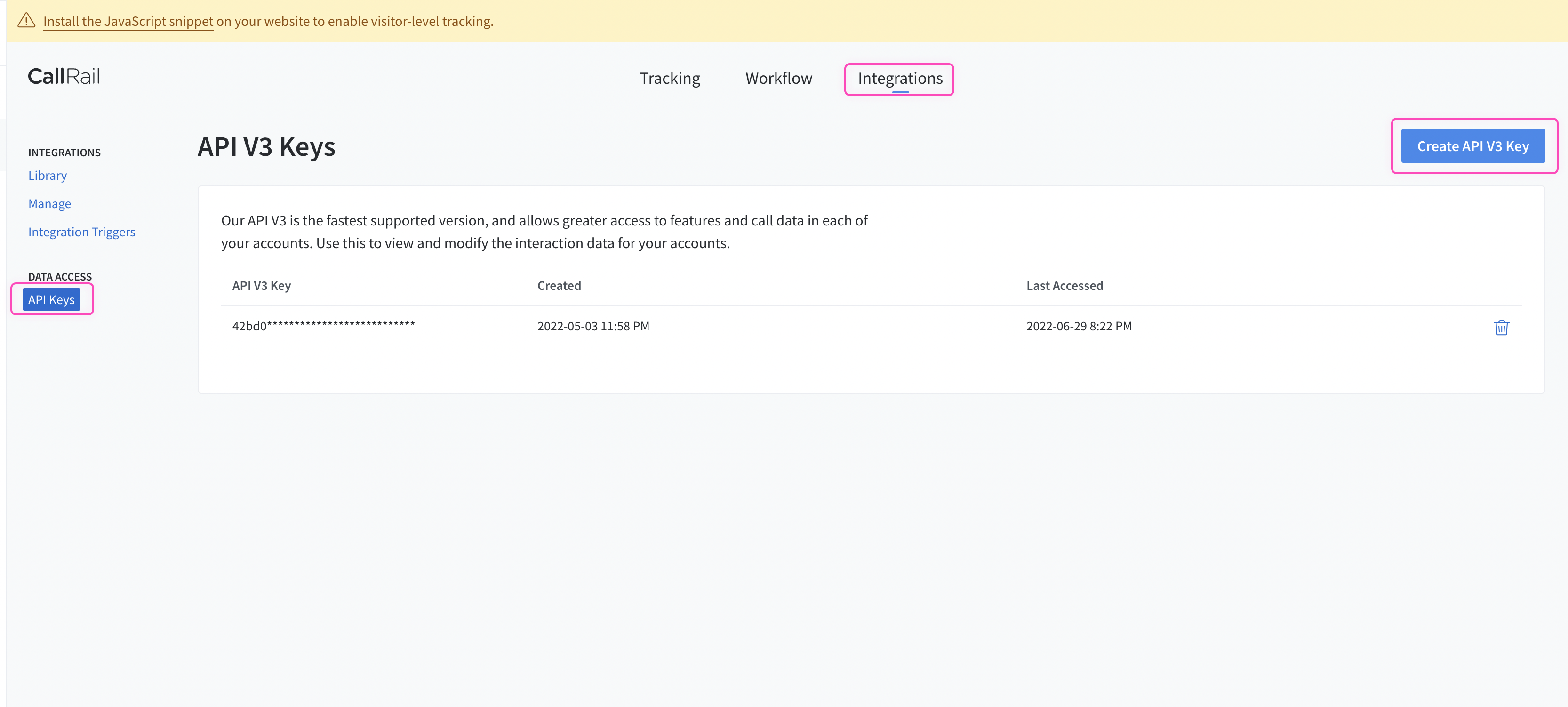

To get this field, head to the CallRail dashboard. Click on the Integrations tab, navigate to API Keys from the left menu panel as shown in the below image or make sure you are logged in and then click on this API Key link. It will lead you to the same page.

Once you have added these fields to your Tray.io authentication pop-up window, click the 'Create authentication' button.

Your connector authentication setup should now be complete.

Available Operations
Copy

The examples below show one or two of the available connector operations in use.

Please see the Full Operations Reference at the end of this page for details on all available operations for this connector.

Using the Raw HTTP Request ('Universal Operation')
Copy

As of version 1.0, you can effectively create your own operations.

This is a powerful feature that you can use when there is an endpoint in CallRail that is not used by any of our operations.

To use this, you will first of all need to research the endpoint in the API documentation to find the exact format that CallRail will be expecting the endpoint to be passed in.

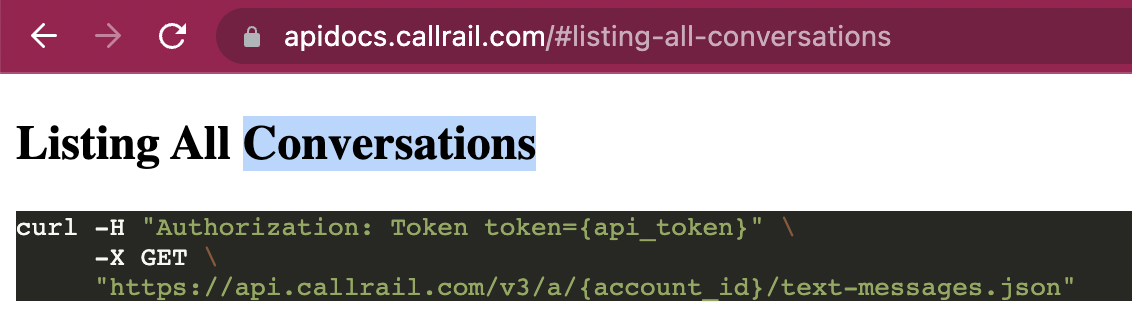

For example, say that the 'Listing All Conversations' operation did not exist in our CallRail connector, and you wanted to use this endpoint. You would use the CallRail API docs to find the relevant endpoint - which in this case is a `GET` request called: `/v3/a/{account_id}/text-messages.json`.

More details about this endpoint can be found here.

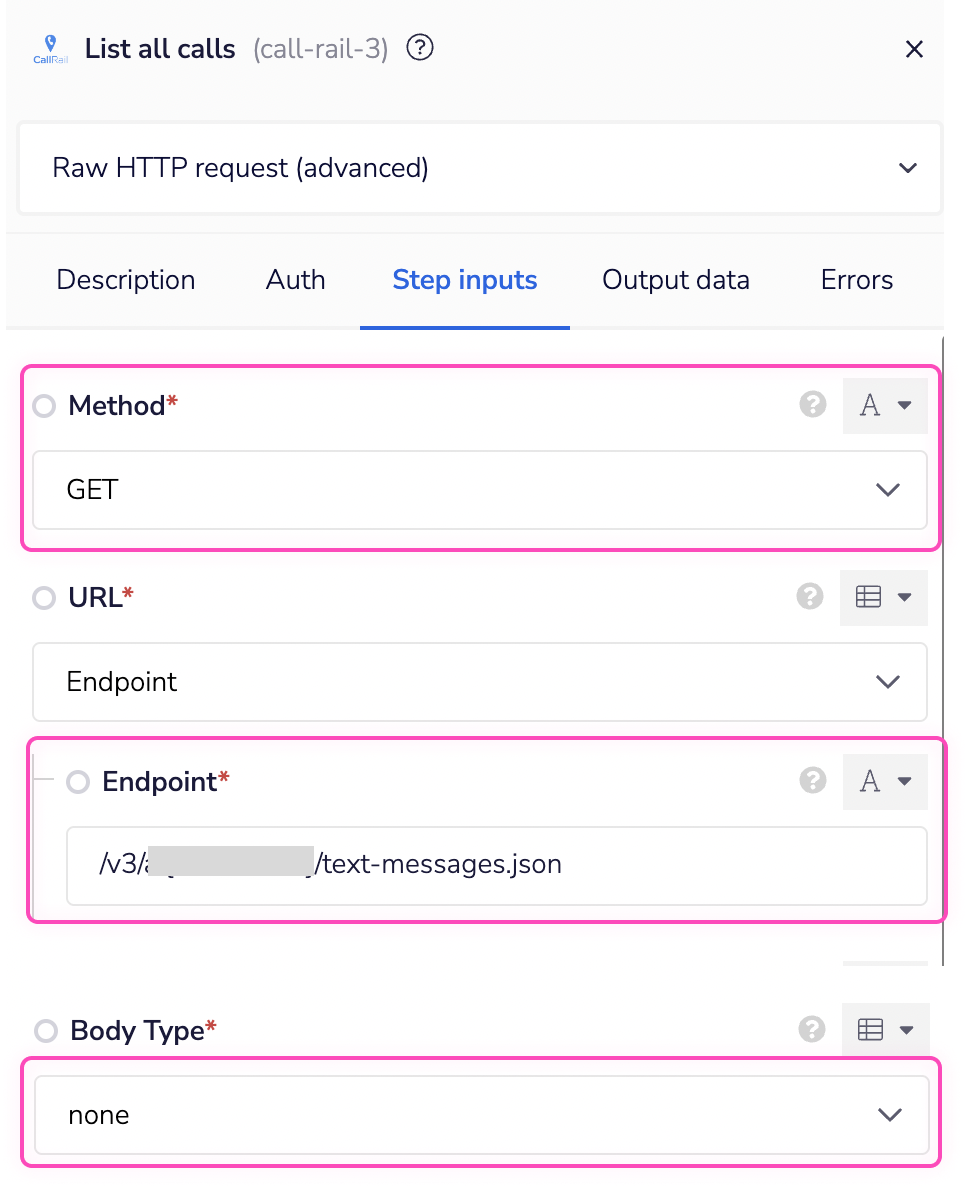

Based on the information provided in the above API call doc, you need to configure the following attributes on your Tray platform:

  • Method: GET

  • URL:

    • Endpoint : /v3/a/{account_id}/text-messages.json

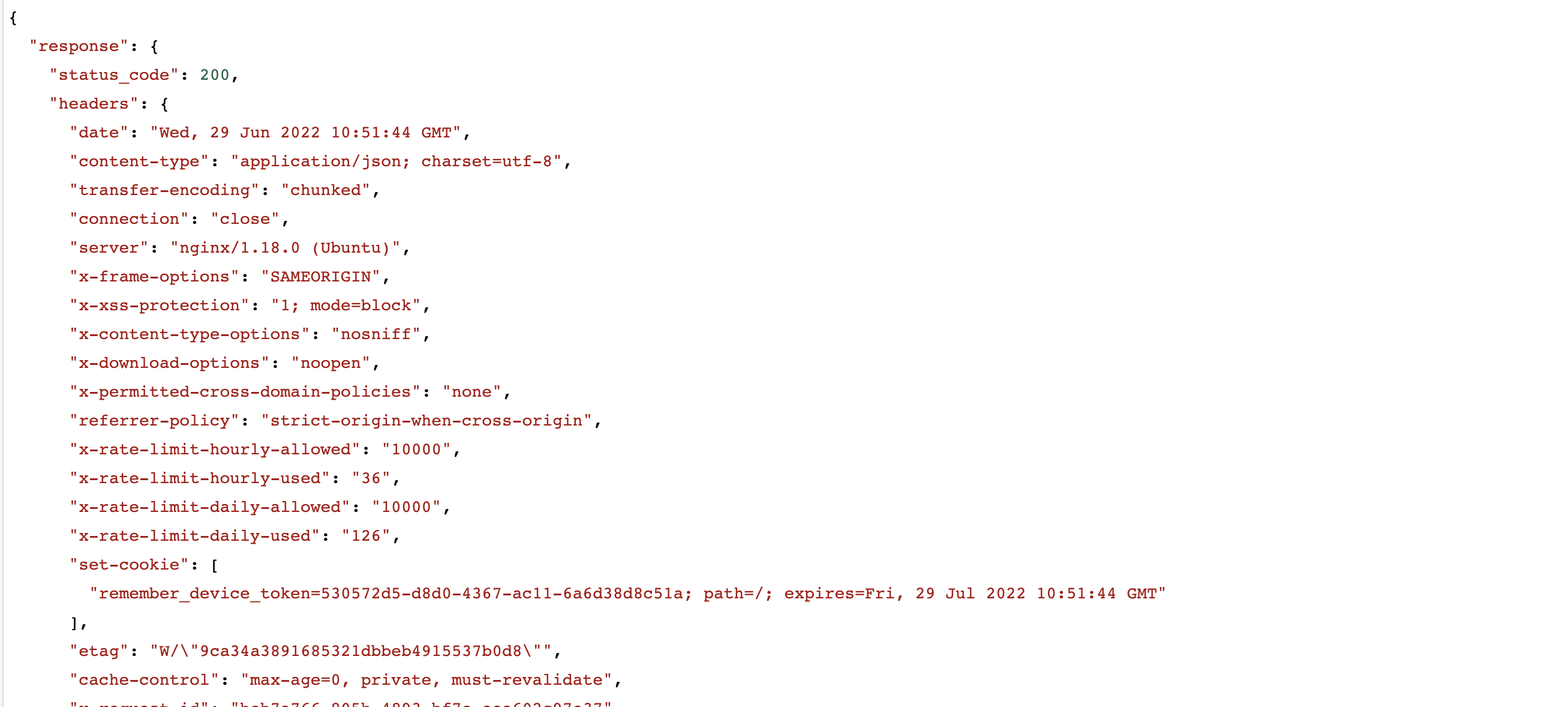

Once the API call is executed successfully, you should get the following results:

Example Usage
Copy

TRAY POTENTIAL: Tray is extremely flexible. By design there is no fixed way of working with it - you can pull whatever data you need from other services and work with it using our core and helper connectors.

Below is an example of a way in which you could potentially use the CallRail connector, to iterate through the Parameter formats stored within your Terminus app.

The steps will be as follows:

  1. Setup using a manual trigger and List all accounts operations.

  2. Add a Loop connector to iterate through the calls.

  3. Get each account call's information details.

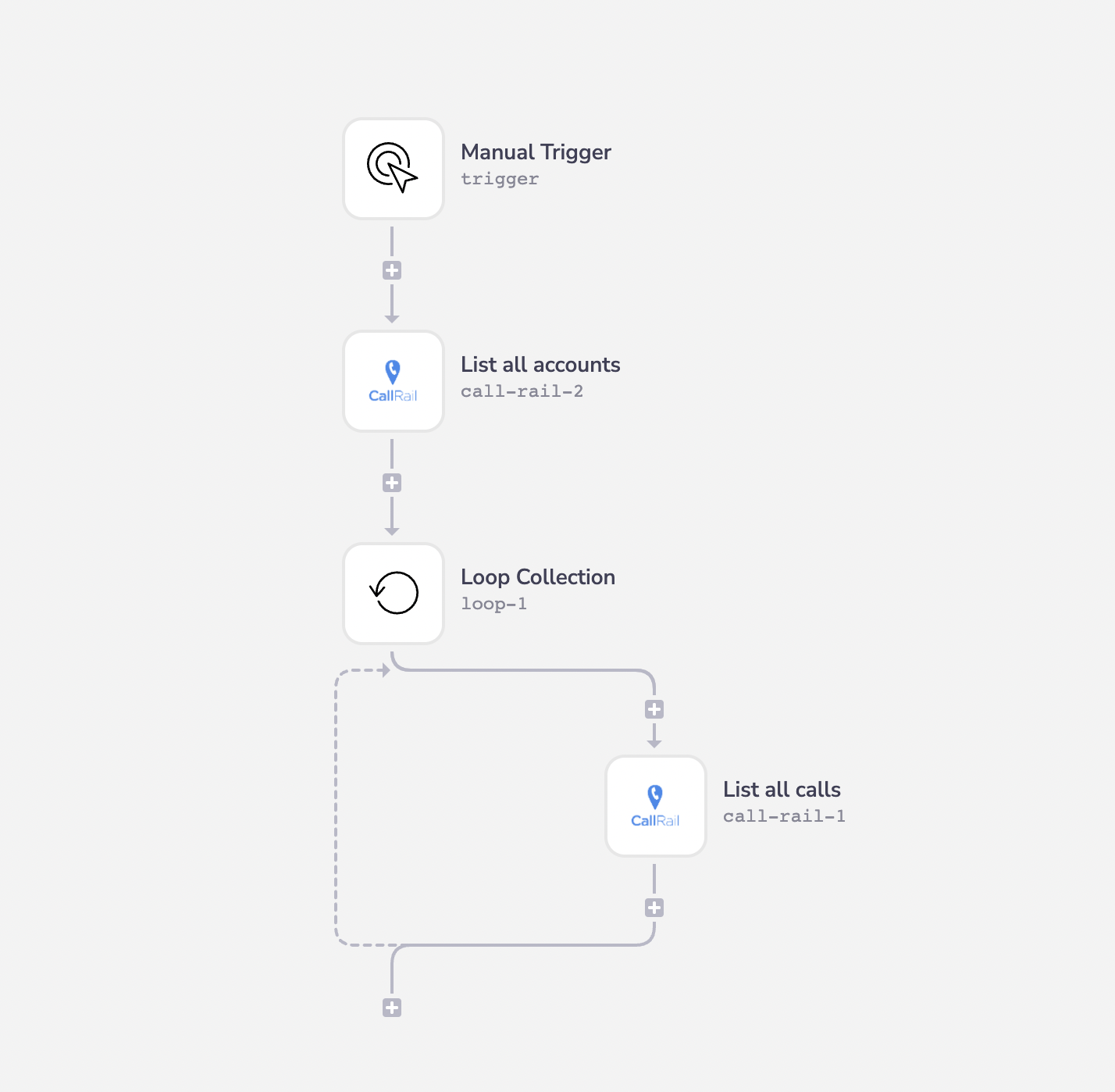

Your completed workflow should look similar to this:

Step-by-step Explanation
Copy

BEST PRACTICES: Whenever you do decide to create your own workflow, be sure to check out some of our key articles such as:
